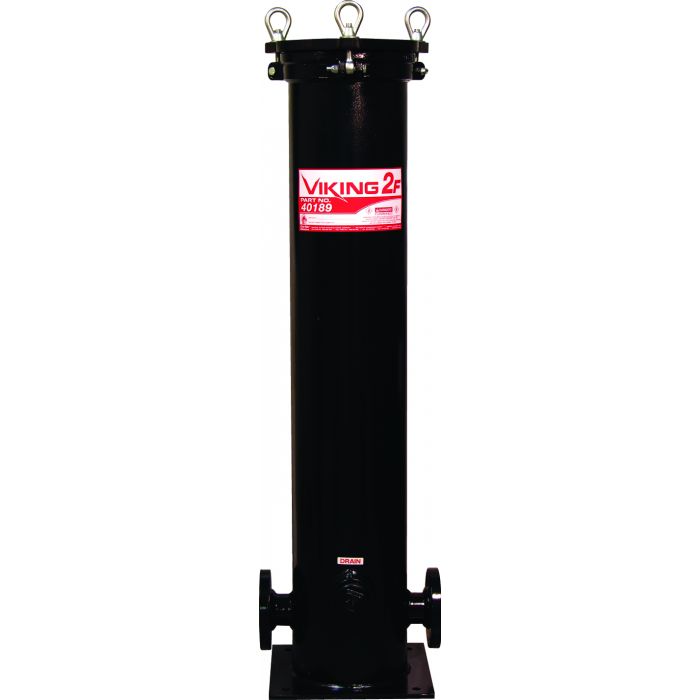

Viking 2F filterhuis zonder elementen 565 l/min G2 geflenst
Heeft u een vraag over dit product?
Stel ons uw vraag
Productomschrijving
Viking 2F | 2" flanged Inlet/Outlet | 565 L/min.
Important note: Delivery time: +/- 8 weeks (equipment made to order, zero stock at our factory and in our warehouse)
The Viking 2F is designed for Filtration of gasoline, diesel fuel, fuel oils, hydraulic oils, synthetic oils, transformer oils and many other solvents and thiners.
Features:
- Height: 122 cm
- Width: 38 cm (incl. flanges)
- Material: Carbon steel
- Connection: 2" flanged inlet/outlet
- Flow Rate: 565L/min.
- Max. Working Pressure: 10bar
- Housing: Carbon Steel and Epoxy Coating inside and outside
- Filter Element: 2 units
- Replacement Element 6"x18" (NOT INCLUDED)
- Bottom Plate: 30x30 cm bottom plate and a 3 bolt, swing down lid. (This lid can be hooked up straight through or at 90 degrees)
- Drain: included
- Certification: ASME
Review toevoegen
Beoordelingen
Nog geen beoordelingen
Productspecificatie
Application
Cleanfuel, Dispensing Pumps, Industrial, Military, Clean-Diesel
Flowrate Diesel (LPM)
565 LPM
Maximum Flow Rate (LPM)
565 LPM
Suitable for
Diesel Fuel, Gasoline, HVO, Hydraulic Oils
Vessel material
Steel
Working pressure (bar)
10 bar
