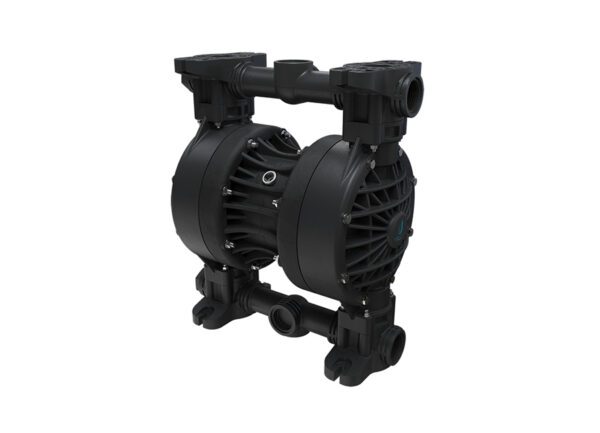

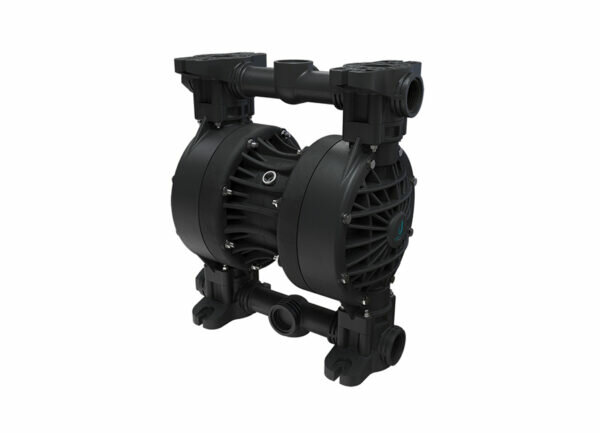

Samoa Debem boxer 522 pp+cf luchtaangedreven membraanpomp 600 l/min G2 BSP 8 bar
Heeft u een vraag over dit product?
Stel ons uw vraag
Productomschrijving
DATA
Head / Flow rate guaranteed in compliance with ISO 9906Technical Specifications
| Suction/delivery connections | G 2 f o DN 50 |
| Air fitting | G 1/2 f |
| Max flow rate * | 600 l/min |
| Max supply air pressure | 8 bar |
| Max head * | 80 m |
| Max negative suction head – dry-running ** | 5 m |
| Max negative suction head – pump primed | 9,5 m |
| Diameter Max suspended solids | 8 mm |
| Noise level ** | 80 dB |
| Volume per stroke | 1825 cc |
PP PVDF PE
| Version | Weight | Min | Max |
| PP (with glass additive) | 38 kg | 3° C | 65° C |
| PP conductive (with carbon additive) | 34,5 kg | 3° C | 65° C |
| PVDF | 45 kg | 3° C | 95° C |
| PE | – | – | – |
| Maximum dimensions | Plastic |
| Height | 650 mm |
| Width | 590 mm |
| Depth | 404 mm |
ATEX ZONE 2 - STANDARD ON ALL MODELS
Review toevoegen
Beoordelingen
Nog geen beoordelingen
Productspecificatie
Aansluiting 1 Afmeting
G2
Aansluiting 2 Afmeting
G2
Capaciteit per slag
1825 cc
Materiaal Hardware (Bouten e.d.)
RVS
