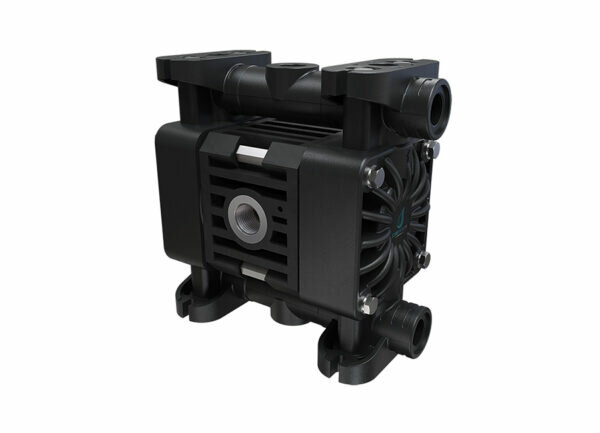

Samoa Debem boxer 15 PP luchtaangedreven membraanpomp 17 l/min G3/8 BSP 8 bar
Heeft u een vraag over dit product?
Stel ons uw vraag
Productomschrijving
Technical Specifications
Head / Flow rate guaranteed in compliance with ISO 9906
| Suction/delivery connections | G 3/8 f o DN 10 – Clamp o NPT available only on request |
| Air fitting | G 3/8 f |
| Max flow rate * | 17 l/min |
| Max supply air pressure | 8 bar |
| Max head * | 80 m |
| Max negative suction head – dry-running ** | 3 m |
| Max negative suction head – pump primed | 9,5 m |
| Diameter Max suspended solids | 0,5 mm |
| Noise level ** | 65 dB |
| Volume per stroke | 10,3 cc |
Construction materials (casing and manifolds) available on request
– POMc
– UHMWPE
– Duplex/S.Duplex
A1 – A2 – A4 – M1 – M2 – M4
A1 – A2 – A4 – M1 – M2 – M4
A1 – A2 – M1 – M2

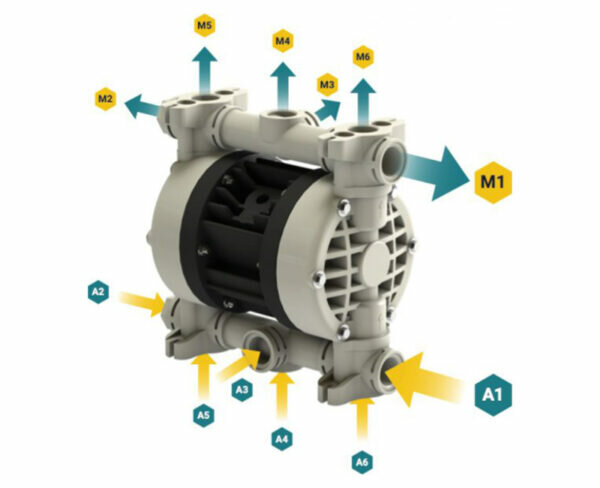

STANDARD CONNECTIONS
M1 – A1
SUCTION
A1 – A2 – A3 – A4 – A5 – A6
DELIVERY
M1 – M2 – M3 – M4 – M5 – M6
Review toevoegen
Beoordelingen
Nog geen beoordelingen
Productspecificatie
Aansluiting 1 Afmeting
G3/8
Capaciteit per slag
10,3 cc
Materiaal Seals
EPDM
Maximaal debiet / Flowrate
17 Ltr/min
-11%
