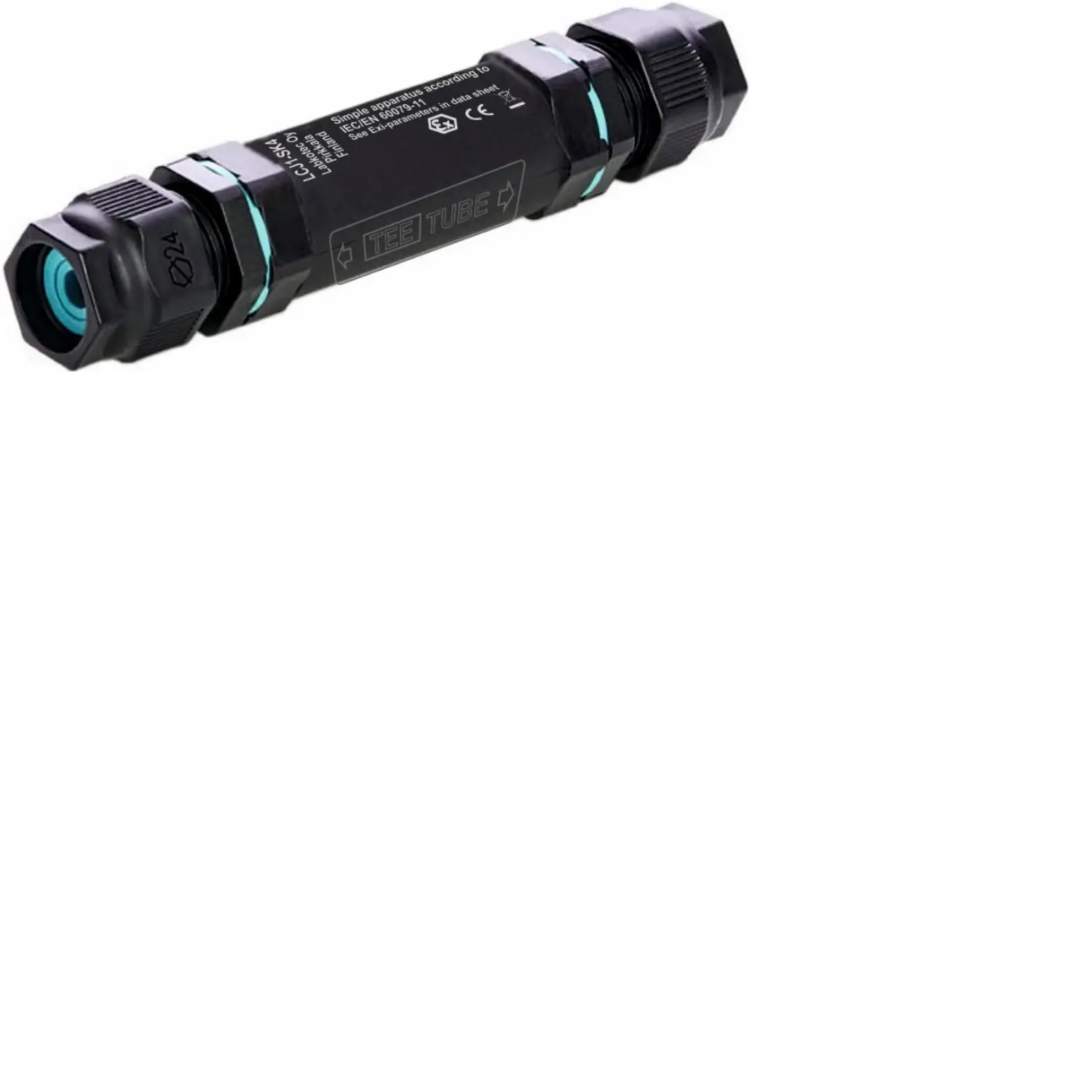

Labkotec kabellasdoos kunststof voor 1 sensor OMS-1/GA-1
Heeft u een vraag over dit product?
Stel ons uw vraag
Productomschrijving
TECHNICAL DATALCJ1-SK4
Dimensions Ø 26,5 x 115 mm
Weight 47 g
Temperature Ambient temperature: -40 ... +125 °C
Protection IP68
Ex-classification Simple apparatus according to IEC/EN 60079-11 (Intrinsic Safety i)
II 1G Ex ia IIA T4 Ga
Ui = 30 V, Ii = 500 mA, Pi = 1 W, Ta = -40 °C …+125 °C
Components (see Figure 1)
(1) Housing PA66 GF UL94 V0 GWT 960°C
(2) Terminal block 3-pole, core cross section 0,5-4,0 mm2 PA66 GF UL94 V0 GWT 960°C
(3) Cable glands (*) 2 pcs, M20 x 1,5 PA66 UL94 V2 GWT 850°C
(4) Seal (*) 2 pcs, TPE, for cable diameter 5-13,5 mm
(5) O-rings (*) 2 pcs, silicone, 24 x 19,3 x 1,5 mm
(*) O-rings and seals of cable glands are mineral oil resistant
If shielded cable is used, shield must be cut and insulated properly
Review toevoegen
Beoordelingen
Nog geen beoordelingen
Productspecificatie
Gewicht
47 g
Kabel
Nee
Medium
Smeerolie, Vet
Model alarm
Drijflaagdikte Olie, Drijflaagdikte Vet
